Clavinet D6 Disassembly Guide Page Two

Step Two

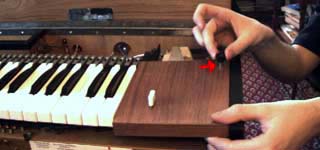

On the right wood panel, remove the thumbscrew located in the upper right hand corner.

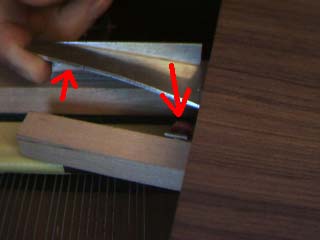

Pull up the enlongated piece of metal and pull the wood panel straight out towards you. You will notice a small red wheel attached to the panel that rolls underneath the metal. This is the damper mechanism.

Remove the panel from the keyboard.
